جزئیات محصول:
پرداخت:
|
| رنگ: | با توجه به درخواست مشتری | اندازه کلت: | ø3.176 یا ø6 میلی متر |
|---|---|---|---|
| برجسته کردن: | ماشین حکاکی CNC اسپندل سرعت بالا,ماشین فریزینگ CNC Spindle با سرعت بالا,60000 دور در دقیقه چرخ دنده cnc با چرخش بالا,Milling Machine CNC High Speed Spindle,60000 RPM high torque cnc spindle |
||

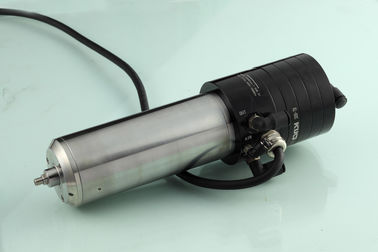

MODEL: KL-60C
NAME : BALL BEARING SPINDLE
SPEED RANGE: 10,000 - 60,000 rpm
BEARING TYPE: Ball Bearing
SPINDLE WEIGHT: 4.6kg
COLLET SIZE: ø3.176 or ø6 mm(Optional)
Working Air Pressure: ≥5.0 kgf/cm²
Motor power: 1.5KW
Coolant: Water or Oil
Coolant water temperature: 20±2℃
Voltage : 33-182V
Max Current : 5A
Static Runout :≤2.0μm
Dynamic Runout: ≤10μm
Vibration: 1.0MM/S
Temperature sensor Resistence : R=10KΩ±5%(at 25℃)
Competitive Advantage:
LOW STATIC RUN OUT
LOW DYNAMIC RUN OUT
STABLE CHARACTER AND LONG LIFE TIME
MULTYPURPOSE
APPLICATION :
Suitable for CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding,
Quick Detail:
|
MODEL |
DESCRIPTION |
Application |
Machine reference |
Bearing type |
|
KL-60C |
SPEED RANGE: 10,000 - 60,000 rpm |
CNC engraving & milling machine,dental grinding,touch-screen glass of mobile outline grinding, |
TALIANG; LISONG |
BallBearing |
SPECIFICATION:
|
SPEED RANGE(RPM) |
10,000-60,000 |
|
FREQUENCY (HZ) |
167-1000 |
|
MOTOR TYPE |
THREE PHASE |
|
MOTOR OUTPUT POWER |
1.5KW |
|
TORQUE(N.cm) |
382 |
|
VOLTAGE (V) |
33-182 |
|
COLLET CLAMPING DIAMETER (mm) |
ø3.175 OR ø6 |
|
COOLING TEMPERATURE(°C) |
20±2 |
|
BEARING TYPE |
BALL BEARING |
| STATIC RUNOUT(μm) | ≤2 |
|
DYNAMIC RUNOUT (μm) |
≤10 |
|
VIBRATION (mm/s) |
≤1.0 |
|
THREE PHASE RESISTANCE (Ω) |
2.2±0.2 |
|
COLLET LOCK TYPE |
DETACHABLE |
|
SPINDLE WEIGHT (kg) |
Around 4.6 |
|
MAX CURRENT (A) |
5 |
|
DUST BLOW AIR PRESSURE (kg/cm2) |
≥2.0 |
|
RELEASE AIR PRESSURE (kg/cm2) |
≥5 |
Spindle Drawing
